| ชื่อแบรนด์: | BENENV |
| เลขรุ่น: | MDS-404 |
| MOQ: | 1 ชุด |
| ราคา: | Negotiatable |
| ระยะเวลาการจัดส่ง: | 3-7 สัปดาห์ |
| เงื่อนไขการจ่ายเงิน: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

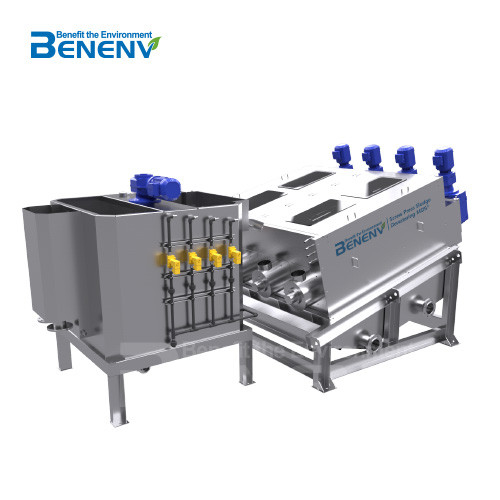

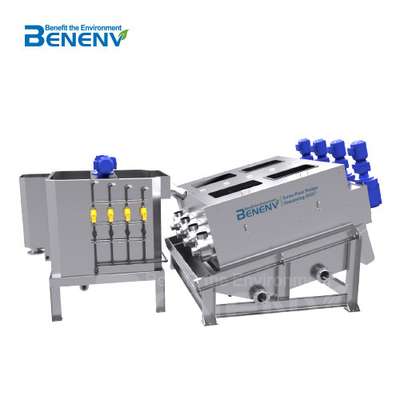

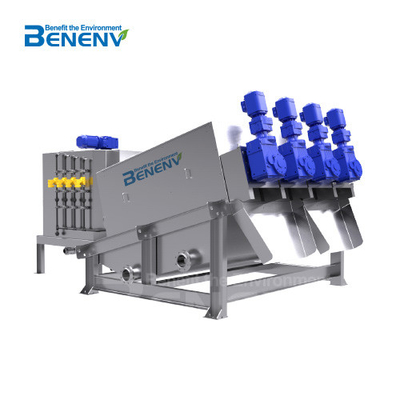

The Multi-Disk Screw Press (MDS) is an advanced sludge dewatering machine and solid-liquid separator designed for efficient sludge thickening and sludge dewatering. Utilizing a unique Screw Press Type mechanism, this self-cleaning unit progressively compresses wastewater sludge through the synchronized movement of free rings and a rotary filter plate. Key innovations include a tungsten carbide coating on the inner screw and a slow-rotation system, which minimize friction and ensure extended durability of the sludge dewatering equipment.
Filtrate is drained through gaps between the rings, separating sludge thickening and dewatering zones, while dewatered sludge cake (minimum 20% solids) is discharged at the end plate. Ideal for oily sludge treatment plants, the MDS operates seamlessly across a wide sludge concentration range (2,000–50,000 mg/L) and outperforms traditional belt presses, decanters, or filter presses in energy efficiency.
1,Screw Press Cylinder Check Point
The Screw Press Sludge Dewatering Machine incorporates a unique one-button quick-opening design, enabling rapid access for maintenance and streamlined operation of the volute dewatering press. Operators can visually observe the internal processes of the sludge machine at any stage, assess sludge thickening progress and dewatering effect across all sections, and dynamically adjust parameters via the Sludge Dehydrator control interface to optimize performance.

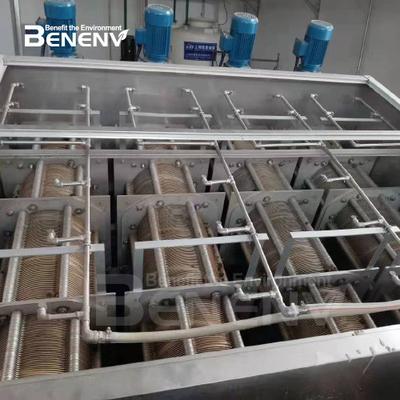

2,Screw Press Ring for Reference
The screw press machine incorporates special reference rings positioned in each zone of the sludge dewatering system to enable comparative analysis of ring conditions. Operators can monitor wear patterns and evaluate performance deviations by observing these rings. This proactive approach ensures timely overhauling interventions are scheduled once the system surpasses its theoretical lifespan, optimizing the reliability of the sludge dewatering equipment.
3,Pre-Sludge thickening Structure in Flocculation Tank
The pre-sludge thickening structure, as an optional module integrated into the flocculation tank, enhances sludge treatment capacity by enabling in-tank sludge concentration. This configuration allows the screw press machine to achieve a >50% capacity improvement when processing low-concentration sludge (≤1% solids content), optimizing the efficiency of the sludge dewatering system.
| Model | DS Standard Capacity (kg/h) |
Sludge Treatment Capacity(m³/h) | ||||||
| Low Concentration | High Concentration | 2000mg/L | 4000mg/L | 10000mg/L | 20000mg/L | 25000mg/L | 50000mg/L | |
| MDS101 | 3 | 6 | 1.5 | 0.75 | 0.6 | 0.3 | 0.24 | 0.12 |
| MDS131 | 6 | 12 | 3 | 1.5 | 1.2 | 0.6 | 0.48 | 0.24 |
| MDS132 | 12 | 24 | 6 | 3 | 2.4 | 1.2 | 0.96 | 0.48 |
| MDS201 | 12 | 20 | 6 | 3 | 2 | 1 | 0.8 | 0.4 |
| MDS202 | 24 | 40 | 12 | 6 | 4 | 2 | 1.6 | 0.8 |
| MDS301 | 30 | 60 | 15 | 7.5 | 6 | 3 | 2.4 | 1.2 |
| MDS302 | 60 | 120 | 30 | 15 | 12 | 6 | 4.8 | 2.4 |
| MDS303 | 90 | 180 | 45 | 22.5 | 18 | 9 | 7.2 | 3.6 |
| MDS351 | 60 | 120 | 30 | 15 | 12 | 6 | 4.8 | 2.4 |
| MDS352 | 120 | 240 | 60 | 30 | 24 | 12 | 9.6 | 4.8 |
| MDS353 | 180 | 360 | 90 | 45 | 36 | 18 | 14.4 | 7.2 |
| MDS354 | 240 | 480 | 120 | 60 | 48 | 24 | 19.2 | 9.6 |
| MDS401 | 100 | 170 | 50 | 25 | 17 | 8.5 | 6.8 | 3.4 |
| MDS402 | 200 | 340 | 100 | 50 | 34 | 17 | 13.6 | 6.8 |
| MDS403 | 300 | 510 | 150 | 75 | 51 | 25.5 | 20.4 | 10.2 |
| MDS404 | 400 | 680 | 200 | 100 | 68 | 34 | 27.2 | 13.6 |
| Model | Sludge Cake Discharge Height (mm) |
Size(mm) | Net Weight (kg) |
Running Weight (kg) |
Power (kw) |
Rinsing Water (L/h) |
||
| L | W | H | ||||||
| MDS101 | 215 | 1860 | 750 | 1080 | 205 | 295 | 0.2 | 24 |
| MDS131 | 250 | 1860 | 750 | 1080 | 205 | 300 | 0.2 | 24 |
| MDS132 | 250 | 1960 | 870 | 1080 | 275 | 425 | 0.3 | 48 |
| MDS201 | 350 | 2440 | 860 | 1380 | 320 | 470 | 0.3 | 32 |
| MDS202 | 350 | 2580 | 977 | 1270 | 470 | 730 | 0.6 | 64 |
| MDS301 | 495 | 3350 | 941 | 1564 | 910 | 1320 | 0.8 | 40 |
| MDS302 | 495 | 3570 | 1260 | 1670 | 1350 | 2130 | 1.2 | 80 |
| MDS303 | 495 | 3830 | 1620 | 1670 | 1820 | 2880 | 1.95 | 120 |
| MDS351 | 585 | 3900 | 1160 | 2190 | 1610 | 2210 | 1.9 | 72 |
| MDS352 | 585 | 4240 | 1550 | 2190 | 2300 | 3400 | 3.75 | 144 |
| MDS353 | 585 | 4460 | 2100 | 2190 | 3350 | 4850 | 6.0 | 216 |
| MDS354 | 585 | 4660 | 2650 | 2190 | 4500 | 6100 | 8.2 | 288 |
| MDS401 | 759 | 4356 | 1170 | 2400 | 2500 | 3400 | 2.25 | 80 |
| MDS402 | 759 | 4900 | 1640 | 2400 | 3480 | 5200 | 4.5 | 160 |
| MDS403 | 759 | 5030 | 2240 | 2400 | 4550 | 7050 | 6.7 | 240 |
| MDS404 | 759 | 5350 | 3240 | 2400 | 6550 | 9660 | 8.2 | 320 |
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service.
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.
